  • Hollow polymer sphere with a single hole

Hollow polymer sphere with a single hole

  • Product Item : SHS
  • Category: Other Porous Materials
  • Product Concentration: 0.025mg/L~0. 5g/L
  • Mean Diameter of sphere: ~150nm
  • Mean Diameter of hole: ~30nm
  • Mean thickness of shell: ~25nm
  • INQUIRY   EMAIL
Product Description:



Information:

Product

Hollow polymer sphere with a single hole

Storage Buffer

Dispersed in water, no preservative

Storage Instructions

Storage at room temperature, sealed

Expiry Date

Use within one month after opening

Product Concentration

0.025mg/L~0. 5g/L

Color of product

Reddish brown

Mean Diameter of sphere

~150nm

Mean Diameter of hole

~30nm

Mean chickness of shell

~25nm

Surface functional groups

Carboxyl, Amidogen

Zeta Potential

-40.0mV

BET surface (after 600°C Ar)

630m2/g

Pore size distributions (after 600°C Ar)

0.6nm

Pore volume (after 600°C Ar)

0.85cm3/g


General description:

Hollow-structured nanomaterials with an inner void space and an outer porous shell have drawn increasing interest in the fields of adsorption, catalysis, energy storage, and drug delivery/controlled release, owing to their unique properties such as high porosity, low density, large surface area, abundant inner void space, etc.

Typically, the inner void space of the hollow-structured nanomaterials can supply a special environment for confinement of different species (e.g., metal ions, reactants, guest molecules, proteins, enzymes, nanoparticles) and result in void-confinement effects, which could induce dramatic performance enhancements in specific applications for process intensification, such as to increase the reaction rate, to realize confinement synthesis,and to enhance the storage capacity.The outer porous shell can provide well defined channels for transfer of guest species, which often can result in mass transfer limitation and/or a molecular sieving effect (determined by the sizes of guest species and pores in the shells).

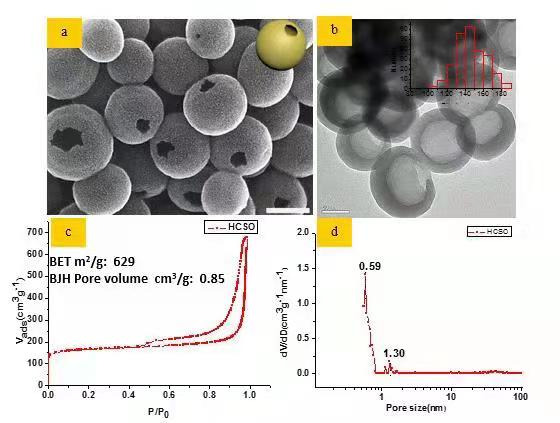

Technical parameter:


Samples
Particle size
(nm)
Hole size
(nm)
BET surface area
(m2/g)
Total pore volume
(cm3/g)
Pore size
(nm)
HCH-1 130 24 629 0.62 0.6
HCH-2 80 22 628 0.65 0.6
HCH-3 60 25 651 0.63 0.6

Product presentation:

This item is synthesized by a soft template method. They are obtained through processes such as hydrothermal polymerization and pyrolysis.They have the characteristics of adjustable cavity size, uniform opening structure, and high specific surface area, which can be used as catalyst carriers, biopharmaceuticals, and energy storage materials.

Storage condition: Store at room temperature, sealed, dry
